| PART | MATERIAL |
| Body | Bronze BS EN 1982 CC491K |
| Bonnet | Bronze BS EN 1982 CC491K |
| Stem | DZR Brass BS EN 12164 CW602N |
| Stem | Manganese Bronze |
| Disc | Bronze BS EN 1982 CC491K |
| Stem Retainer | DZR Brass BS EN 12164 CW602N |
| Stuffing Box | DZR Brass BS EN 12164 CW602N |
| Stuffing Box | Bronze BS EN 1982 CC491K |
| Packing | Asbestos Free |
| Packing Gland | Brass BS EN 12164 CW614N |
| Packing Gland Nut | Brass BS EN 12164 CW614N |
| Packing Gland | Bronze BS EN 1982 CC491K |
| Packing Nut | Brass BS EN 12164 CW614N |
| Packing Nut | Bronze BS EN 1982 CC491K |
| Handwheel | Aluminium |
| Handwheel | Malleable Iron BS EN 1562 |
| ID Plate | GJMB-300-6 |
| Handwheel Nut | Brass BS EN 12164 CW614N |
| Gasket | Asbestos Free |
Rating PN20
Working Medium Water, Oil and Steam

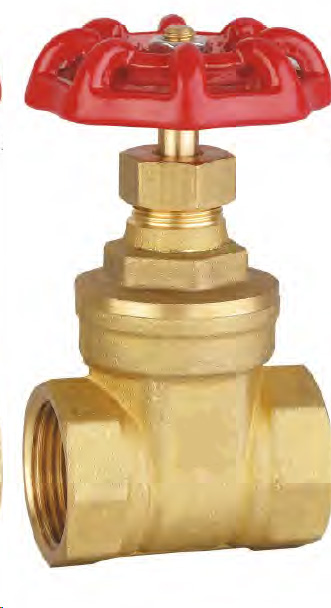

Threaded Bonnet, Non-Rising Stem, DZR Body, Single Piece Wedge
HYDROSTATIC TEST PRESSURE
Shell- 30 bar
Seat- 22 bar
WORKING TEMPERATURE
20 Bar -10° C to 100° C water
WRAS approved -10° C to 85° C
